Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")

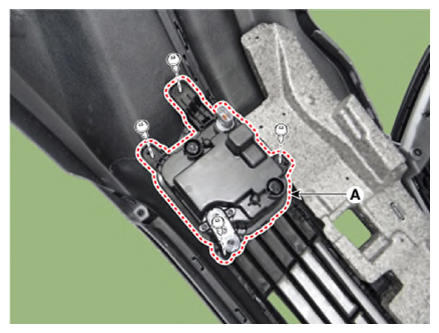

- Remove the front fog lamp assembly (A) after loosening the mounting screws.
