Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
G13155872Courtesy of KIA MOTORS AMERICA, INC.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

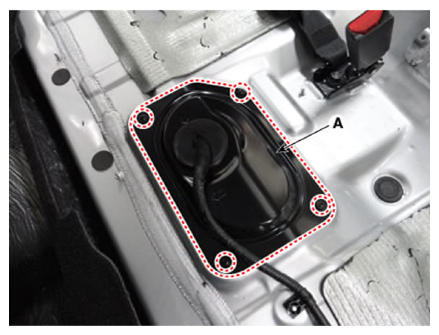

  4. Remove the fuel pump service cover (A).
    G13155873Courtesy of KIA MOTORS AMERICA, INC.

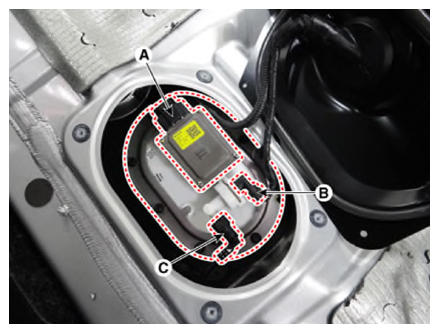

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel feed tube quick-connector (C).
    G13155874Courtesy of KIA MOTORS AMERICA, INC.

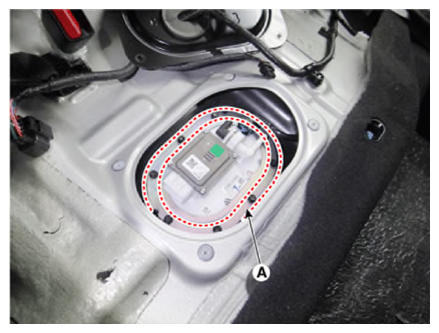

  8. Remove the fuel pump plate cover (A) after loosening the mounting bolts.
  9. Remove the fuel pump from the fuel tank.

    Fuel pump plate cover mounting bolt:

    2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft)

    G13155875Courtesy of KIA MOTORS AMERICA, INC.
