Fuel Pressure Sensor (FPS): Specifications: Specification
WARNING: This page is about a different variant/trim than selected.

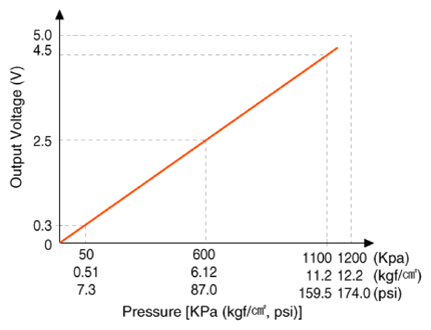

| Pressure [KPa (kgf/cm2
, psi)] |
Output Voltage (V) |
| 50 (0.51, 7.3) |
0.3 |
| 600 (6.12, 87.0) |
2.5 |
| 1100 (11.2, 159.5) |
4.5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
