Component Location

WARNING: This page is about a different variant/trim than selected.

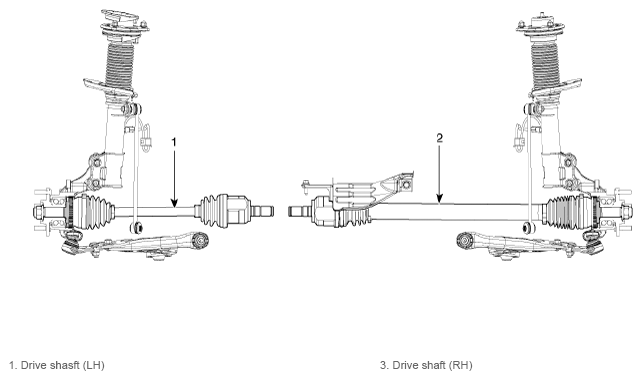

G13156288Courtesy of KIA MOTORS AMERICA, INC.

[LH]

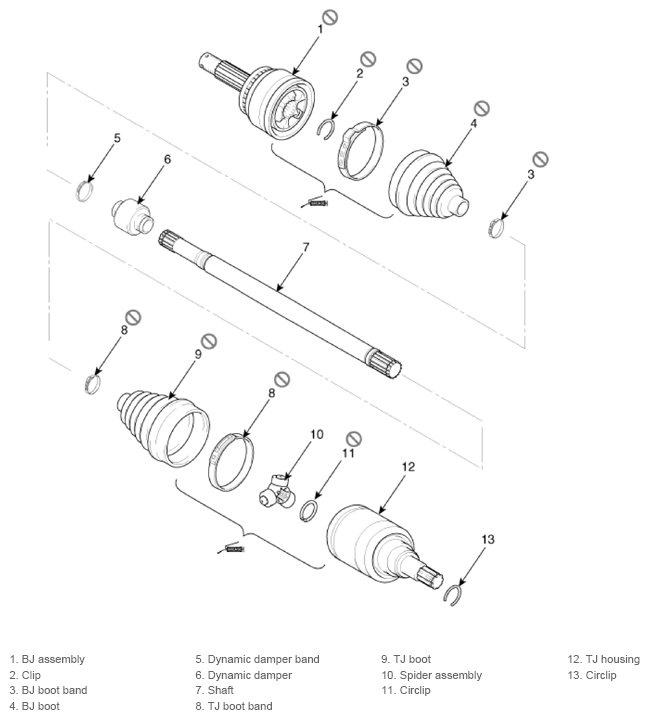

G13156289Courtesy of KIA MOTORS AMERICA, INC.

[RH]

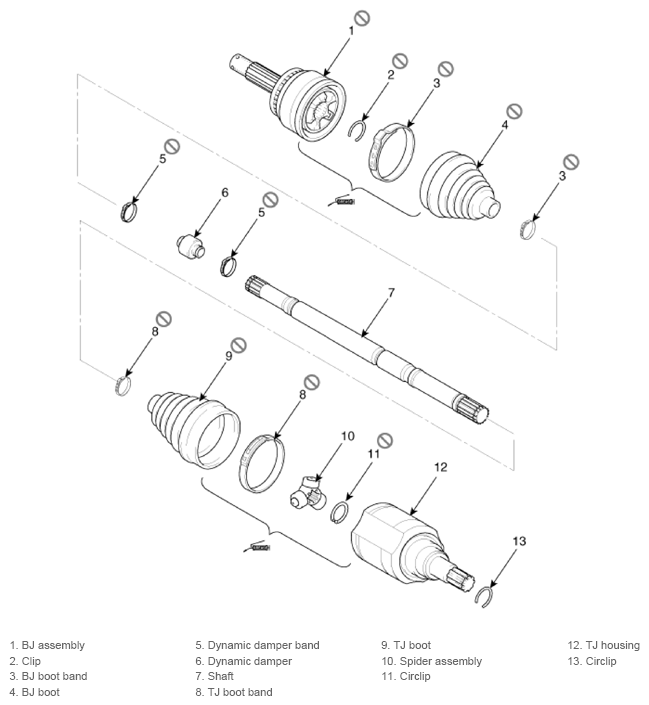

G13156290Courtesy of KIA MOTORS AMERICA, INC.
