Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

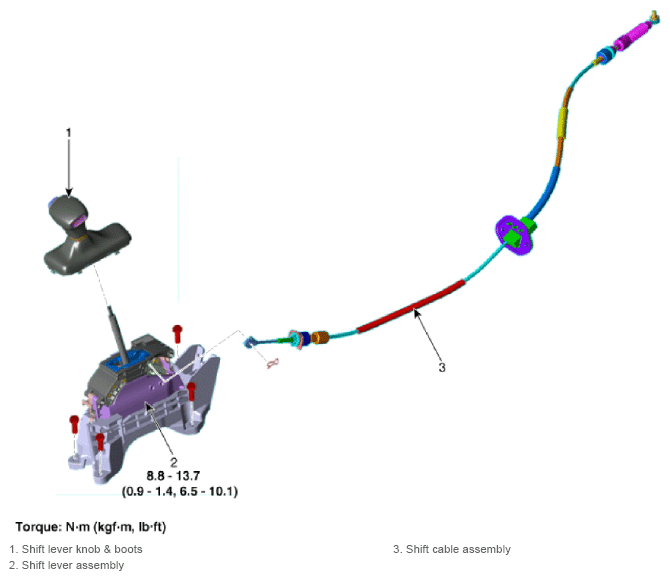

Fig 1: Shift Lever Components With Torque Specification
G13156147Courtesy of KIA MOTORS AMERICA, INC.
