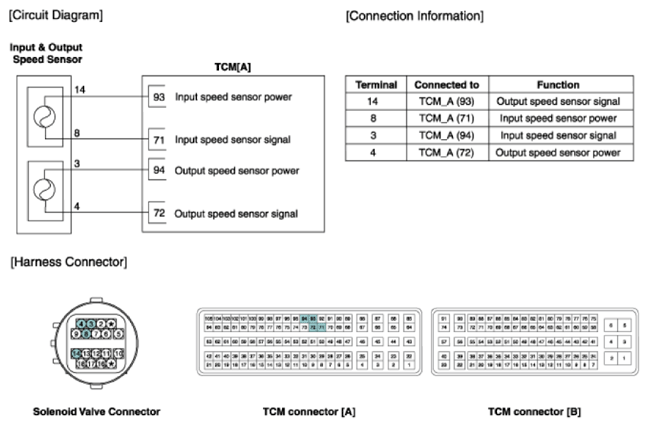

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

G13155952

Courtesy of KIA MOTORS AMERICA, INC.
