Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the smart key unit.

    (Refer to Smart Key System - "SMART KEY UNIT ")

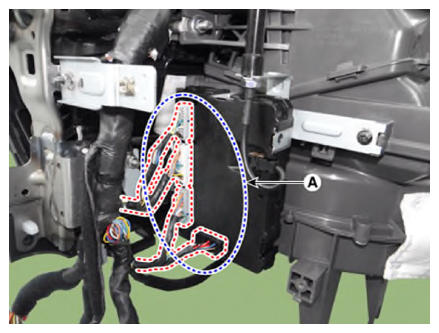

  3. Disconnect the body control module connectors (A).
    G13157904Courtesy of KIA MOTORS AMERICA, INC.

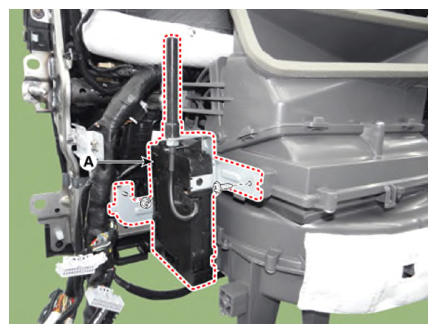

  4. Remove the body control module (A) after loosening the mounting nut and screw.
    G13157905Courtesy of KIA MOTORS AMERICA, INC.
