Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

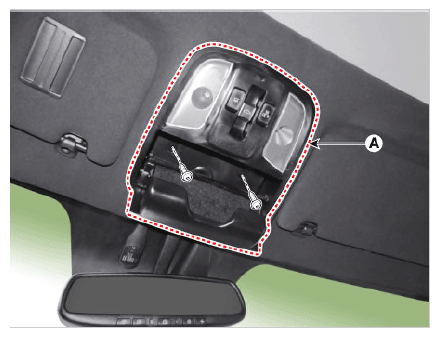

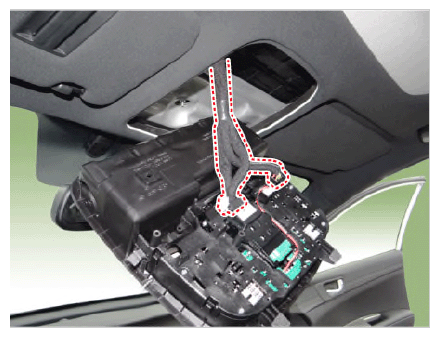

  2. Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).
    G13077347Courtesy of KIA MOTORS AMERICA, INC.
    G13077348Courtesy of KIA MOTORS AMERICA, INC.

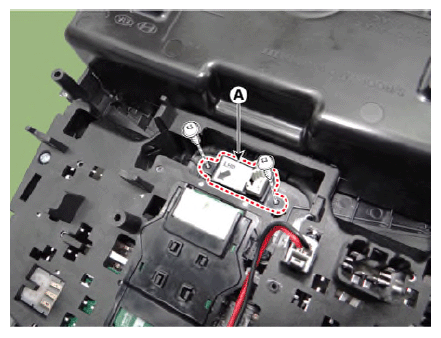

  3. Remove the hands free mic (A) after loosening the mounting screws.
    G13077349Courtesy of KIA MOTORS AMERICA, INC.

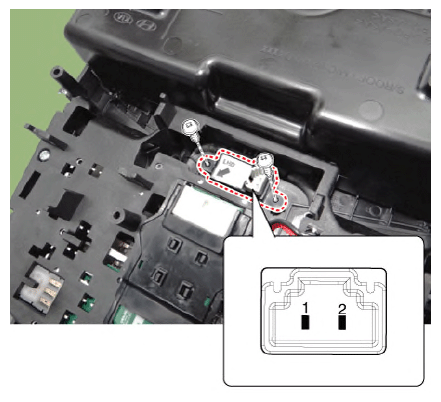

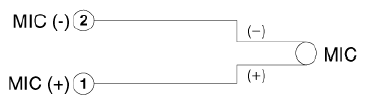

  4. Check the continuity between terminals.
    G13077350Courtesy of KIA MOTORS AMERICA, INC.
    G13077351Courtesy of KIA MOTORS AMERICA, INC.
