Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

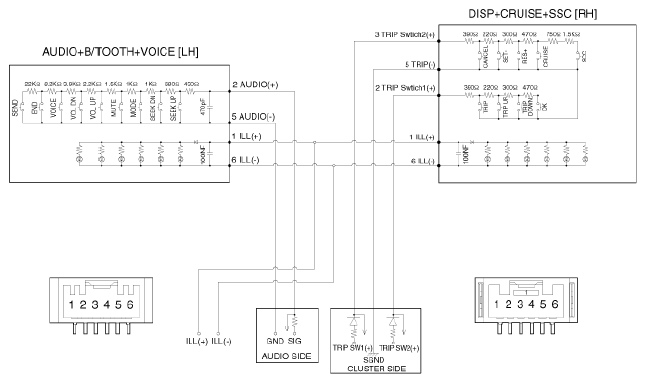

G13077278Courtesy of KIA MOTORS AMERICA, INC.

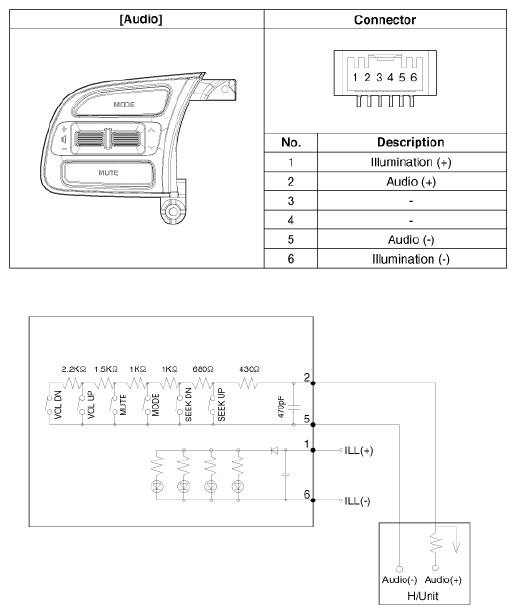

G13077279Courtesy of KIA MOTORS AMERICA, INC.

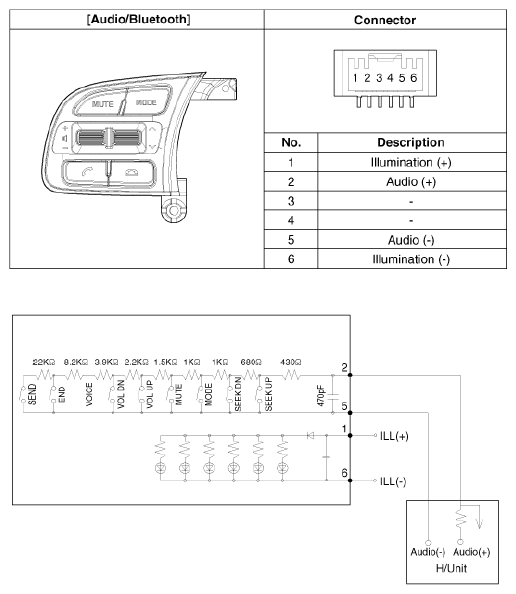

G13077280Courtesy of KIA MOTORS AMERICA, INC.

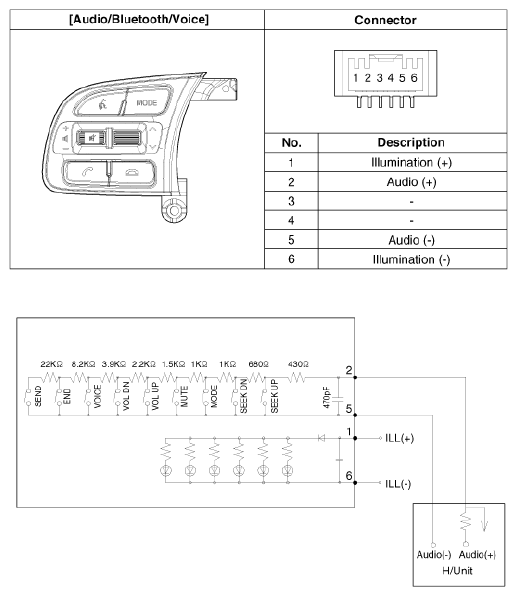

G13077281Courtesy of KIA MOTORS AMERICA, INC.

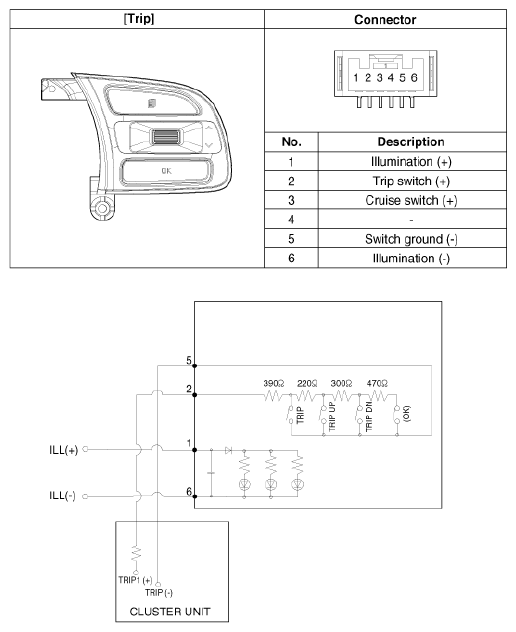

G13077282Courtesy of KIA MOTORS AMERICA, INC.

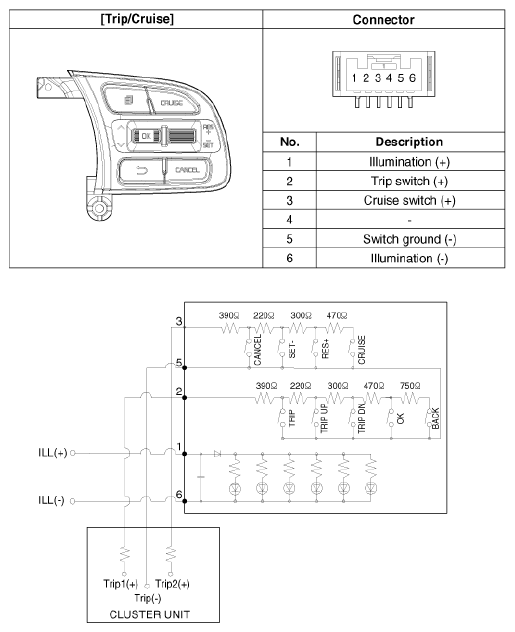

G13077283Courtesy of KIA MOTORS AMERICA, INC.

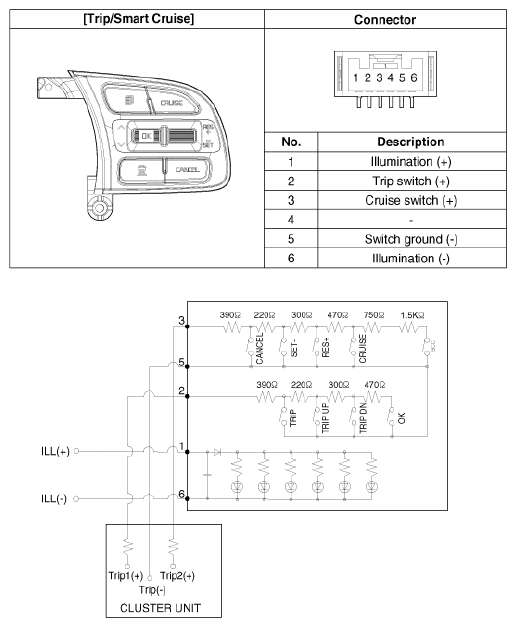

G13077284Courtesy of KIA MOTORS AMERICA, INC.

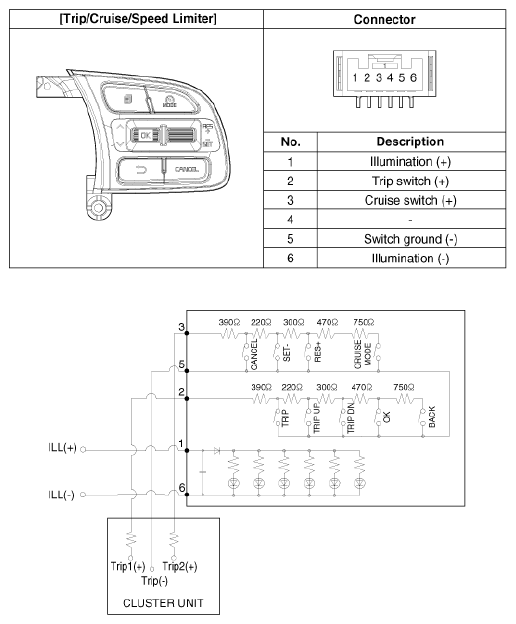

G13077285Courtesy of KIA MOTORS AMERICA, INC.

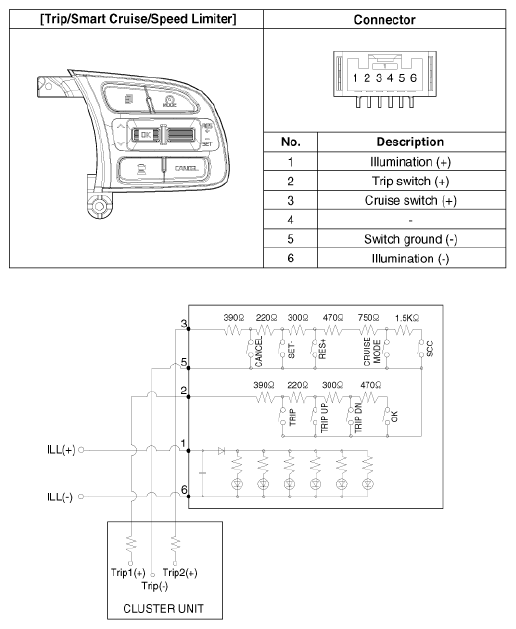

G13077287Courtesy of KIA MOTORS AMERICA, INC.
