Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

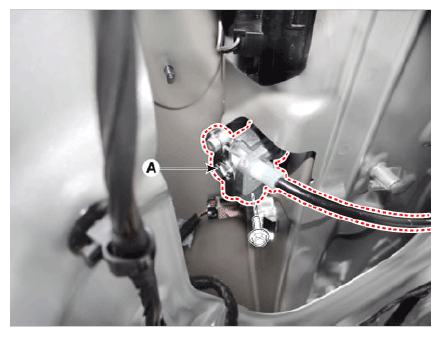

  3. Remove the trunk key set (A) after loosening the bolt.
    G13077358Courtesy of KIA MOTORS AMERICA, INC.

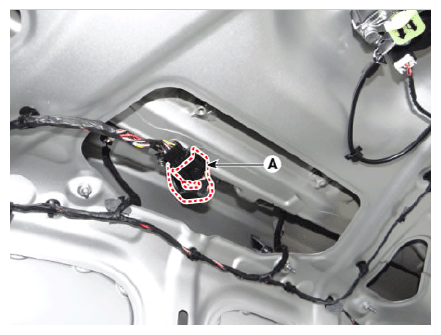

  4. Disconnect the back view camera connector (A).
    G13077359Courtesy of KIA MOTORS AMERICA, INC.

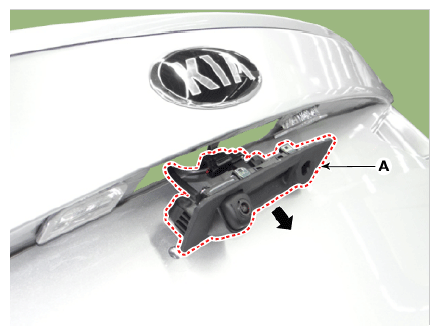

  5. Remove the back view camera assembly (A) after pressing the locking pin.

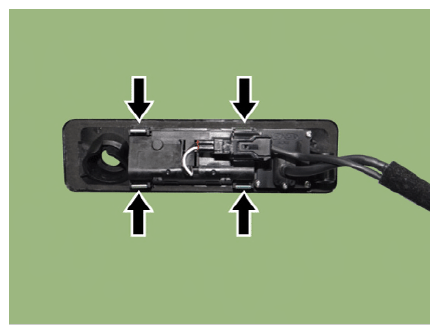

    G13077360Courtesy of KIA MOTORS AMERICA, INC.
    G13077361Courtesy of KIA MOTORS AMERICA, INC.
