Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

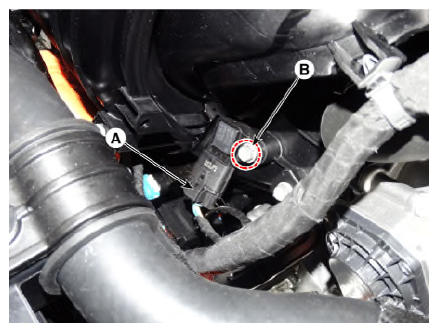

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.
    G13077600Courtesy of KIA MOTORS AMERICA, INC.
