Warning Condition

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Warning zone

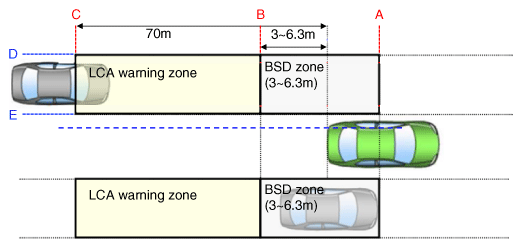

    Fig 1: Checking Lane Change Assist Warning Zone Dimension
    G12312118Courtesy of KIA MOTORS AMERICA, INC.
  2. Conditions for BSD warning ON
    1. The entire body of the target vehicle is located behind the line A.
    2. Any part of the target vehicle passes the line B.
    3. Any part of the target vehicle that passes line D and enters.
    4. The entire part of the target vehicle that passes line D and enters.

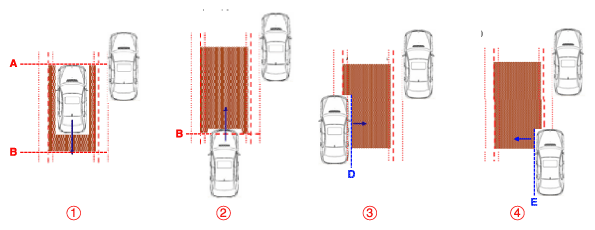

    Fig 2: Lane Change Assist Warning Zone - Conditions For BSD Warning ON
    G12312119Courtesy of KIA MOTORS AMERICA, INC.
  3. Conditions for BSD warning OFF
    1. The entire body of the target vehicle that moves before line A.
    2. The entire body of the target vehicle that moves behind line B.
    3. The entire body of the target vehicle that passes the line D and throughout.
    4. The entire part of the target vehicle that passes the line E and throughout.

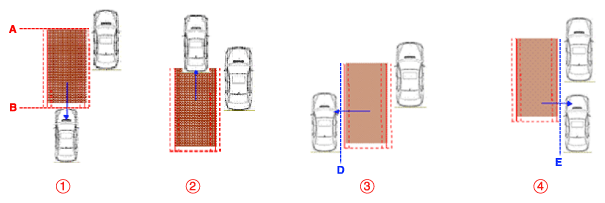

    Fig 3: Lane Change Assist Warning Zone - Conditions For BSD Warning OFF
    G12312120Courtesy of KIA MOTORS AMERICA, INC.
  4. Conditions for LCA warning ON
    1. The entire body of the target vehicle that is located behind line B.
    2. Any part of the target vehicle that passes line C.
    3. Any part of the target vehicle that passes line D and enters.
    4. The entire part of the target vehicle that passes line E and enters.
    5. In all the conditions above; Time to Collision (TTC) is not less than 4.5 seconds.

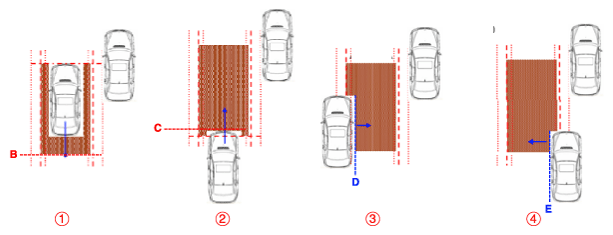

    Fig 4: Lane Change Assist Warning Zone - Conditions For LCA Warning ON
    G12312121Courtesy of KIA MOTORS AMERICA, INC.
  5. Conditions for LCA warning OFF
    1. The entire body of the target vehicle that is located before line B.
    2. The entire body of the target vehicle that passes line C.
    3. The entire body of the target vehicle that passes line D and throughout.
    4. The entire body of the target vehicle that passes line E and throughout.
    5. In all the conditions above; Time to Collision (TTC) is not more than 4.5 seconds.

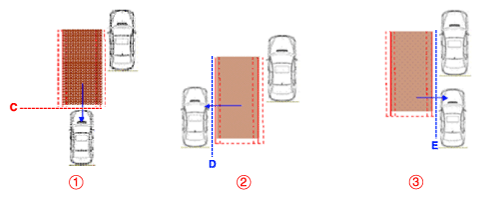

    Fig 5: Lane Change Assist Warning Zone - Conditions For LCA Warning OFF
    G12312122Courtesy of KIA MOTORS AMERICA, INC.
  6. Sensor activation conditions
    1. BSD & LCA switch (indicated by the switch LED) is on.
    2. Vehicle Speed: 30 km/h or faster
    3. Curvature radius: 125 m or more
    4. Relative car speed: -10 - 250 km/h

      (Negative value refers to the distance of the vehicle ahead.)

  7. Sensor deactivation conditions
    1. BSD & LCA switch (indicated by the switch LED) is off.
    2. Vehicle Speed: 28 km/h or slower
    3. Curvature radius: 125 m or less
    4. Relative car speed: All except -10 - 250 km/h

      (Negative value refers to the distance of the vehicle ahead.)

  8. System control restriction
    1. The radar is covered by debris: System conditions - Blockage message sent

      Information

      Contamination of sensors on rear bumper by snow, mud or stickers may result in degradation in sensor detection performance.

    2. The radar installation is distorted due to external impact: Send the error code
    3. BSD & LCA system fails: Send the error code
    4. The radar is overheated: System conditions - Over Temperature message is set off.
    CAUTION:
    • If the surrounding area of rear bumper is contaminated by foreign materials that may interfere radar, error message can be set off although BSD system is normal.
    • Temporary overheating of radar may set off error (overheating) message although BSD system is normal.
  9. Rear Cross Traffic Alert (RCTA)
    Item Specification Remarks
    Vehicle speed 0 to - 10 km/h R" position
    Relative speed 4 - 36 km/h +: closing
    Operating range 0.5 - 20 m Vehicle: 20 m Bike: 15 m
    1. This function helps the driver to detect an approaching vehicle from the rear and side that cannot be visually identified when the driver reverses to pull the vehicle out from a parking spot.
    2. A warning is generated for the target vehicle if it is within 2 seconds based on TTC (Time to Collision). Pedestrians are not considered as approaching targets when warning the driver. (Warning may not be generated.)

      Information

      Time to Collision (TTC): If the predicted time to collision calculated by taking into consideration the relative distance and relative speed to the target vehicle is within 2 - 3.5 seconds, the warning alarm will be set off. (It changes depending on the relative speed of the approaching vehicle.)

    3. Warning zone

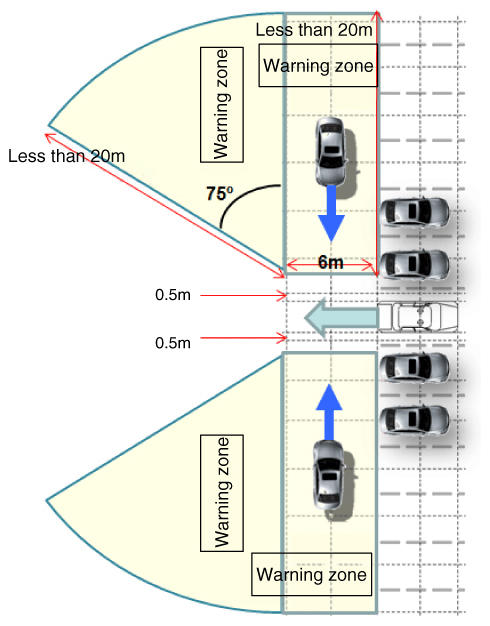

Fig 6: Lane Change Assist Warning Zone System Diagram
G12312123Courtesy of KIA MOTORS AMERICA, INC.
