Hybrid Starter Generator (HSG)
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

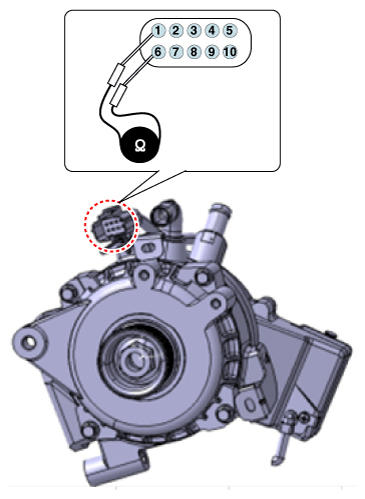

- Inspect the resolver sensor resistance.
Item Pin Specification Remarks Resistance (Resolver sensor) 1 - 6 13.8 - 17.8 Ω At room temperature 68°F (20° C) 2 - 7 26.2 - 30.2 Ω 3 - 8 26.2 - 30.2 Ω - If the resolver sensor need to be replaced, HSG assembly should be replaced.
(Refer to Hybrid Motor Assembly - "HYBRID STARTER GENERATOR ")
