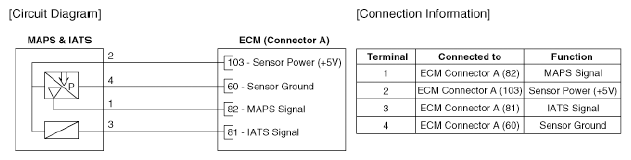

Home >> Kia >> 2019 >> Optima S >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L (Except HEV) >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram >> Notes
