Home >> Kia >> 2019 >> Optima S >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) (Except HEV) >> Memory power seat switch >> Repair Procedures >> Inspection

Repair Procedures: Inspection

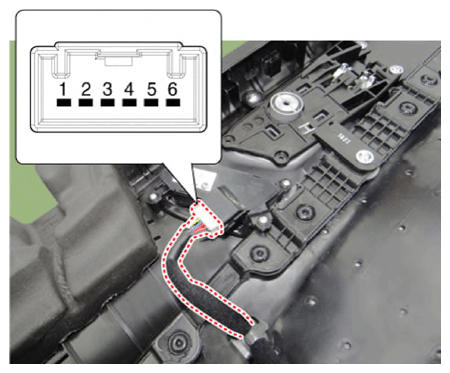

  1. Remove the memory power seat connector
    G12920909Courtesy of KIA MOTORS AMERICA, INC.

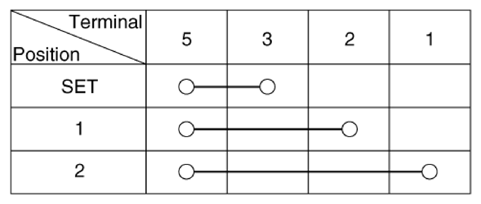

  2. When each switch is pressed, check the electricity flow between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.
G12920910Courtesy of KIA MOTORS AMERICA, INC.
