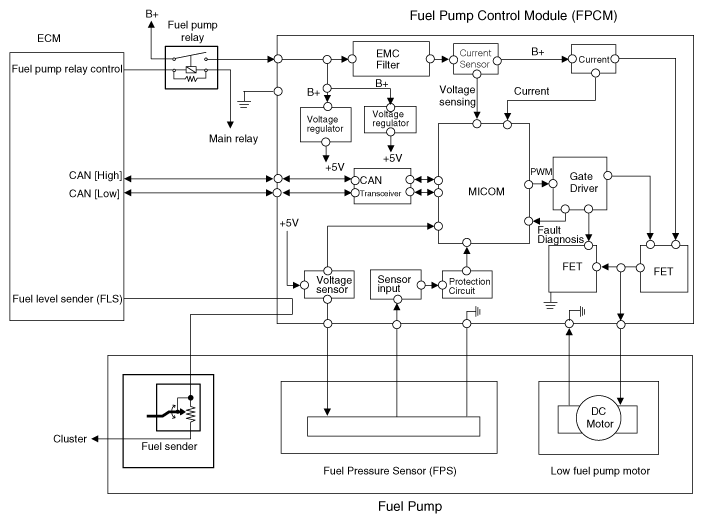

Home >> Kia >> 2019 >> Optima S >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Fuel System >> Fuel Delivery System - 2.4L (Except HEV) >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
