CVVT System Mode

G12932693Courtesy of KIA MOTORS AMERICA, INC.

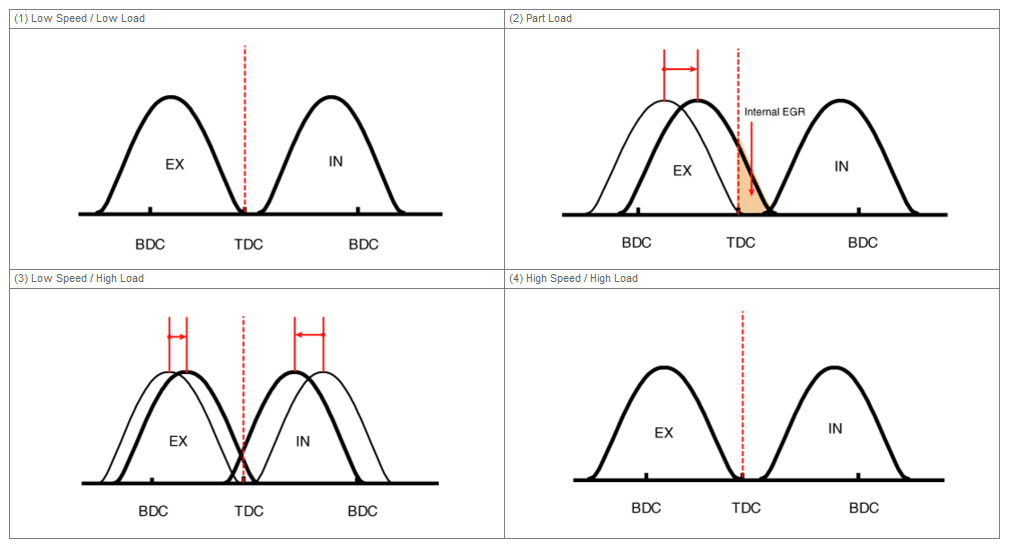

G12932694Courtesy of KIA MOTORS AMERICA, INC.
Driving Condition Exhaust Valve Intake Valve
Valve Timing Effect Valve Timing Effect
(1) Low Speed/Low Load Completely Advance
  • * Valve Under-lap
  • * Improvement of combustion stability
  • * Increase of expansion work
 Completely Retard
  • * Valve Under-lap
  • * Improvement of combustion stability
(2) Part Load Retard
  • * Reduction of pumping loss
  • * Reduction of HC
 Retard
  • * Reduction of pumping loss
(3) Low Speed/High Load Retard
  • *Increase of expansion work
 Advance
  • * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load Advance
  • *Reduction of pumping loss
 Retard
  • *Improvement of volumetric efficiency
