Pressure side impact sensor (P-SIS)
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.
- Remove the front door trim.
(Refer to Body (Interior and Exterior) - "FRONT DOOR TRIM ")

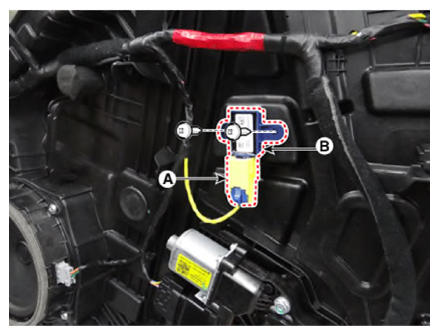

- Remove the pressure side impact sensor (A).
- Loosen the pressure side impact sensor screw, and remove the sensor (B).
Tightening torque :
2.9 - 3.9 N.m (0.3 - 0.4 kgf.m, 2.1 - 2.8 lb.ft)
