Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

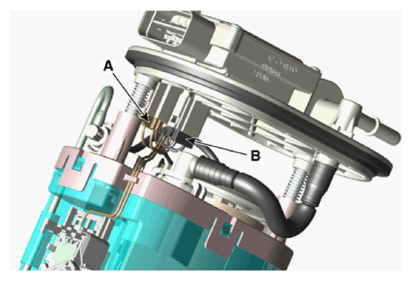

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13155831Courtesy of KIA MOTORS AMERICA, INC.

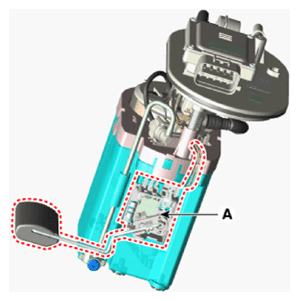

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G13155832Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G13155833Courtesy of KIA MOTORS AMERICA, INC.

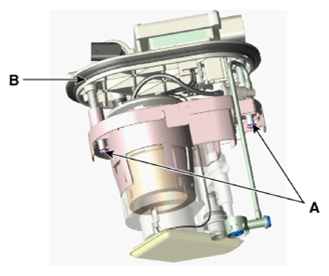

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G13155834Courtesy of KIA MOTORS AMERICA, INC.

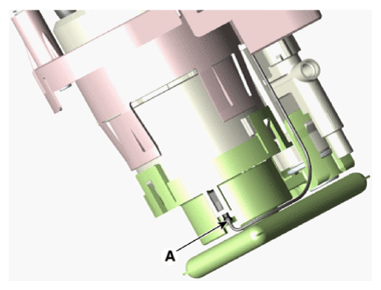

  6. Disconnect the ground cable (A).
    G13155835Courtesy of KIA MOTORS AMERICA, INC.

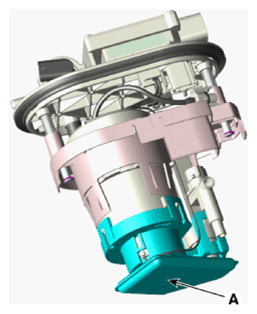

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G13155836Courtesy of KIA MOTORS AMERICA, INC.

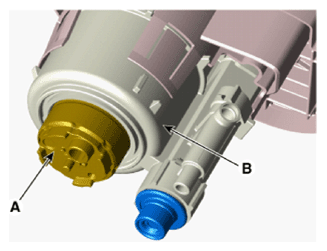

  8. Remove the fuel pump motor (A) from the fuel filter (B).
    G13155837Courtesy of KIA MOTORS AMERICA, INC.
