Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

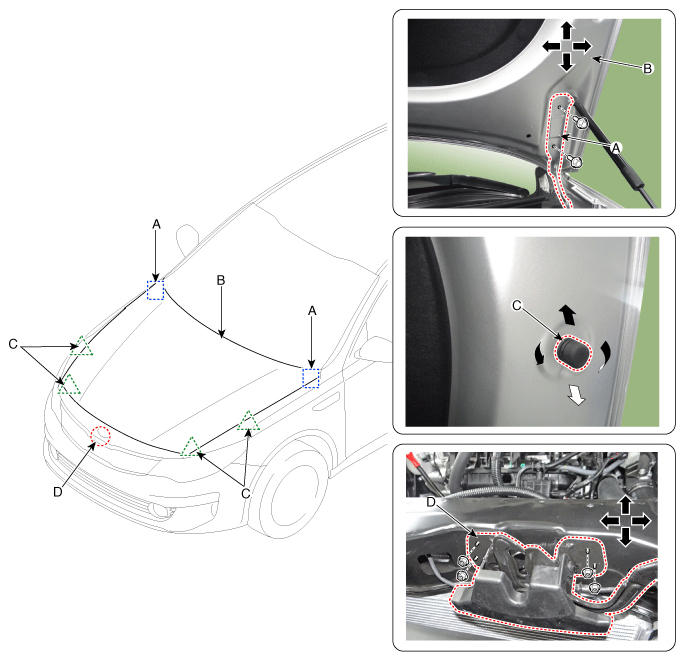

  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down, or right and left.
  2. Adjust the hood height by turning the hood overslam bumpers (C).
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or right and left.
G12350649Courtesy of KIA MOTORS AMERICA, INC.
