Repair Procedures: Replacement
WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Be careful not to damage the hood and body.
Information
- When removing and installing the hood, work in a group of two or more.

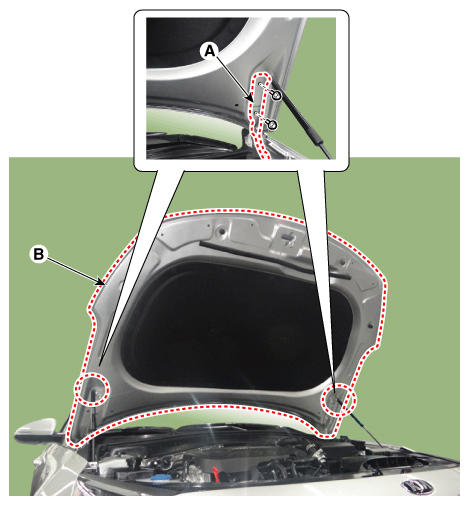

- After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening Torque:
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)
- Install in the reverse order of removal.
Information
- Make sure that the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
