Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Remove the smart key unit (A) after loosening the bolt and screw.

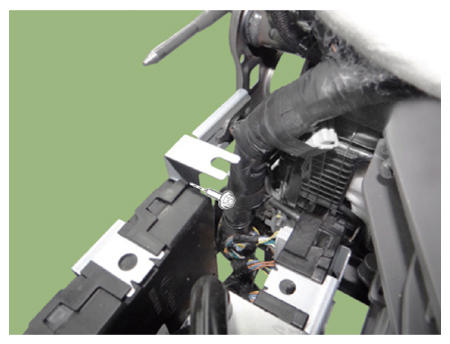

    G12921331Courtesy of KIA MOTORS AMERICA, INC.

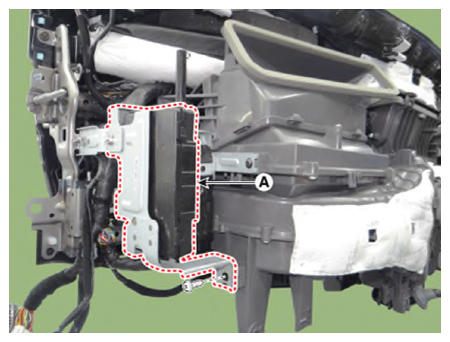

    G12921332Courtesy of KIA MOTORS AMERICA, INC.

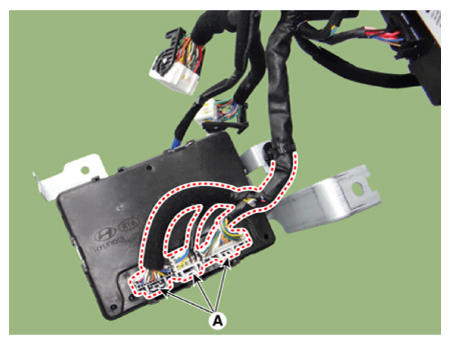

  4. Disconnect the smart key unit connectors (A).
G12921333Courtesy of KIA MOTORS AMERICA, INC.
