Repair procedures: Installation

  1. Install in the reverse order of removal.
NOTE: Before installing the input speed sensor, check the assembled state of the O-rings (A) and apply gear oil to the surface of O-rings.
G12916357Courtesy of KIA MOTORS AMERICA, INC.

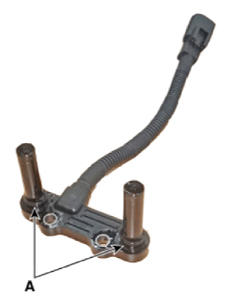

  1. Install in the reverse order of removal.
NOTE: Before installing the input speed sensor, check the assembled state of the O-rings (A) and apply gear oil to the surface of O-rings.
G12916362Courtesy of KIA MOTORS AMERICA, INC.
