Seat Control Switch

WARNING: This page is about a different variant/trim than selected.
  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

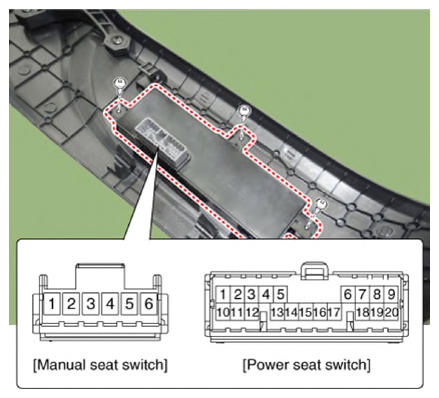

    G13158429Courtesy of KIA MOTORS AMERICA, INC.

    [Manual seat control switch]

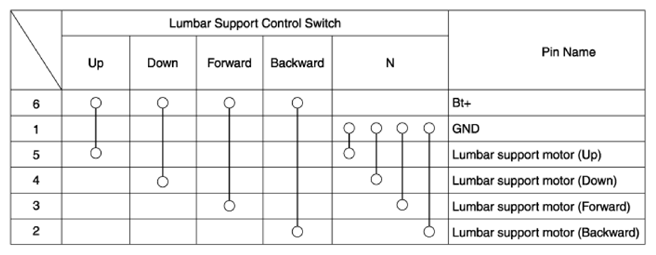

    G13158430Courtesy of KIA MOTORS AMERICA, INC.

    [Power seat control switch]

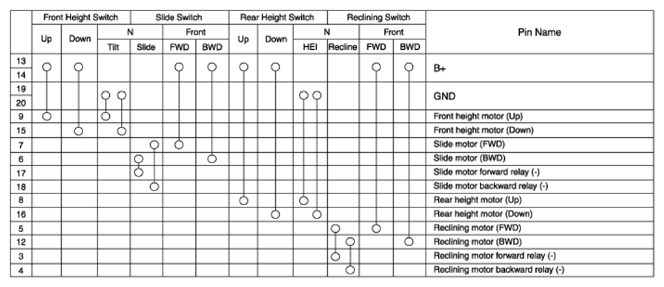

    G13158431Courtesy of KIA MOTORS AMERICA, INC.

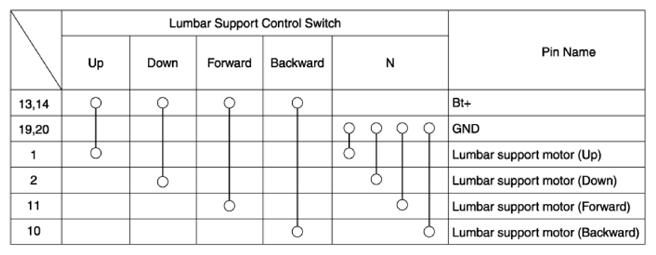

    G13158432Courtesy of KIA MOTORS AMERICA, INC.
