Midrange Speaker (Crash Pad)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be careful not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Using a scraper or remover, remove the midrange speaker grille (A).
    G13157868Courtesy of KIA MOTORS AMERICA, INC.

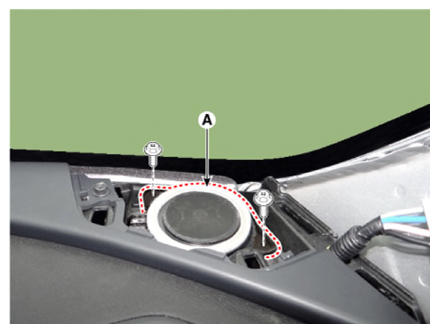

  3. Remove the midrange speaker (A) after loosening the mounting screws.
    G13157869Courtesy of KIA MOTORS AMERICA, INC.

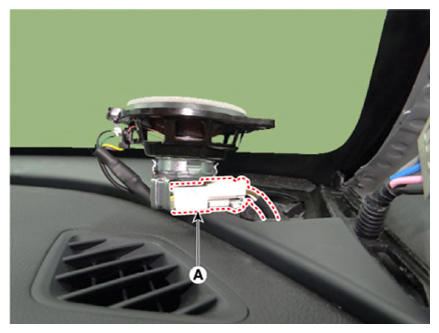

  4. Disconnect the midrange speaker connector (A).
    G13157870Courtesy of KIA MOTORS AMERICA, INC.
