Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).
    G13157885Courtesy of KIA MOTORS AMERICA, INC.
    G13157886Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the hands free mic (A) after loosening the mounting screws.
    G13157887Courtesy of KIA MOTORS AMERICA, INC.

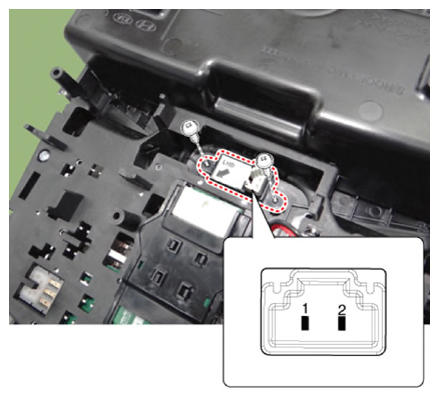

  4. Check the continuity between terminals.
    G13157888Courtesy of KIA MOTORS AMERICA, INC.
    G13157889Courtesy of KIA MOTORS AMERICA, INC.
