Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
Remove the Dynamic damper.
(Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")

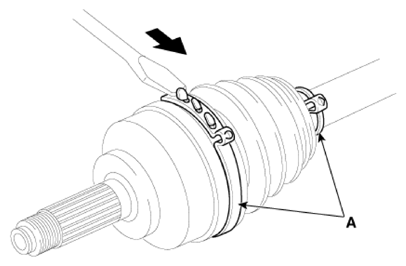

Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the BJ boot.
Install in the reverse order of removal.
CAUTION:
- Do not disassemble the BJ assembly.
- Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
- The boot band should be replaced with a new one.
Check the front alignment.
(Refer to Suspension System - "FRONT ALIGNMENT ")
