Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering column upper and lower shrouds after loosening the screws.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE & CLOCK SPRING ")

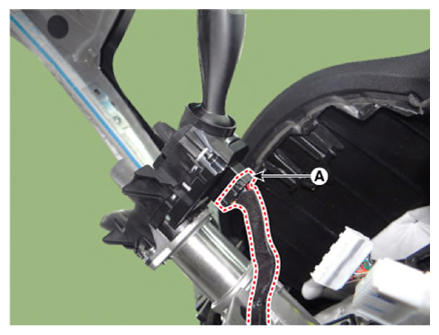

  5. Disconnect the multifunction switch connector (A).
    G13158275Courtesy of KIA MOTORS AMERICA, INC.

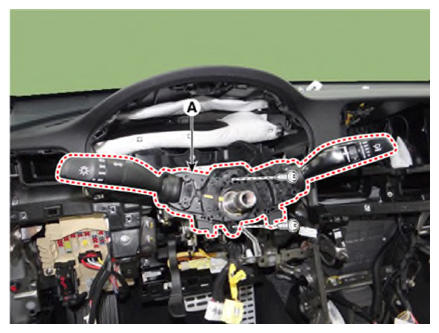

  6. Remove the multifunction switch assembly (A) after loosening the screws.
    G13158276Courtesy of KIA MOTORS AMERICA, INC.
