Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.

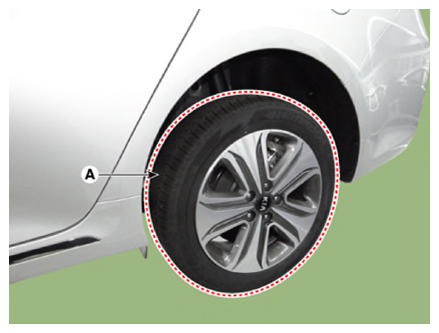

Remove the wheel & tire (A).
Tightening torque:

88.2. - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the rear wheel & tire.

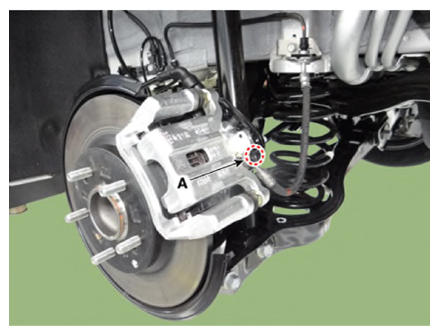

Loosen the brake hose bolt (A) from the caliper and then remove the hose.

Courtesy of KIA MOTORS AMERICA, INC.

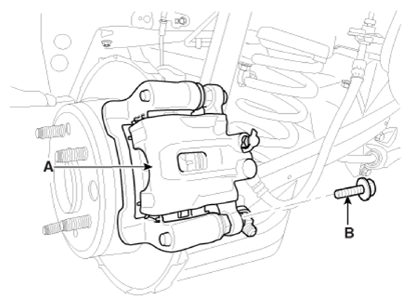

Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.

Courtesy of KIA MOTORS AMERICA, INC.

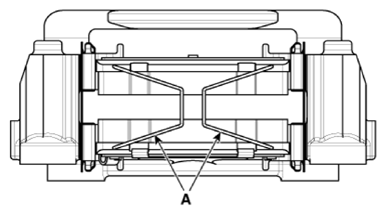

Remove the return spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

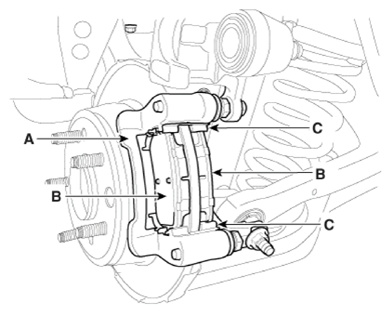

Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.
