Interior 2 Antenna

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

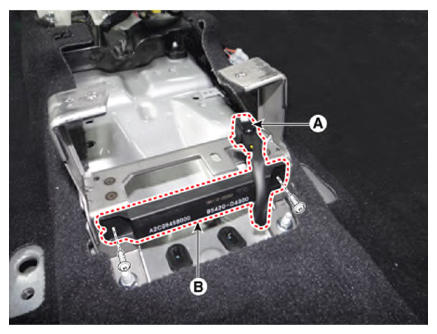

  3. Remove the interior 2 antenna (B) after loosening the mounting screws and disconnecting the connector (A).
    G13158505Courtesy of KIA MOTORS AMERICA, INC.
