Door Outside Handle

WARNING: This page is about a different variant/trim than selected.

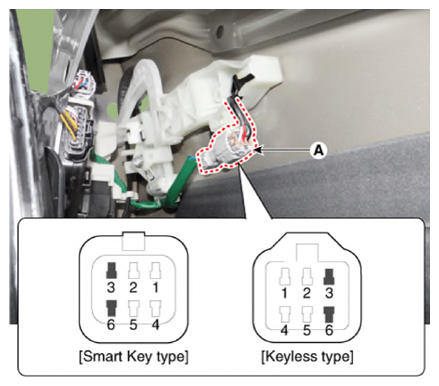

  1. Disconnect the front door outside handle connector (A).
    G13158515Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals No. 3 and No.
    G13158516Courtesy of KIA MOTORS AMERICA, INC.
    No Description
    1 Door antenna (+)
    2 Pocket lamp LED (+)
    3 Door lock/unlock button switch
    4 Door antenna (-)
    5 Pocket lamp LED (-)
    6 Door lock/unlock button switch ground

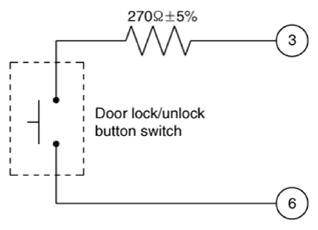

    G13158517Courtesy of KIA MOTORS AMERICA, INC.
