FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

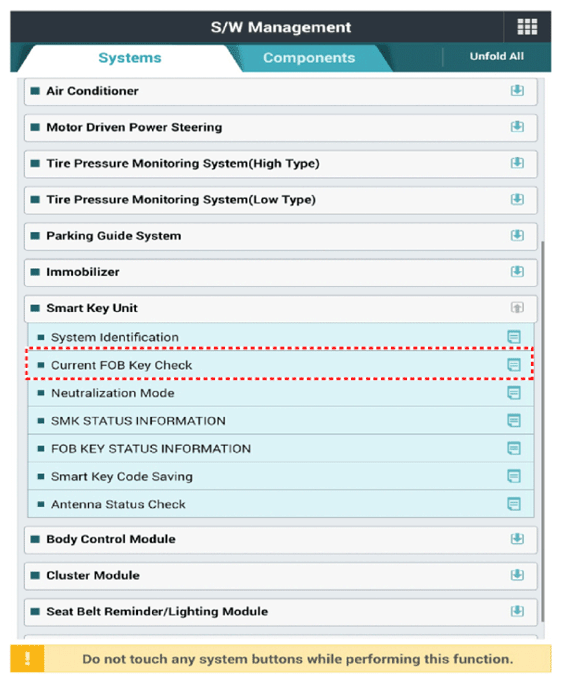

    G13158534Courtesy of KIA MOTORS AMERICA, INC.

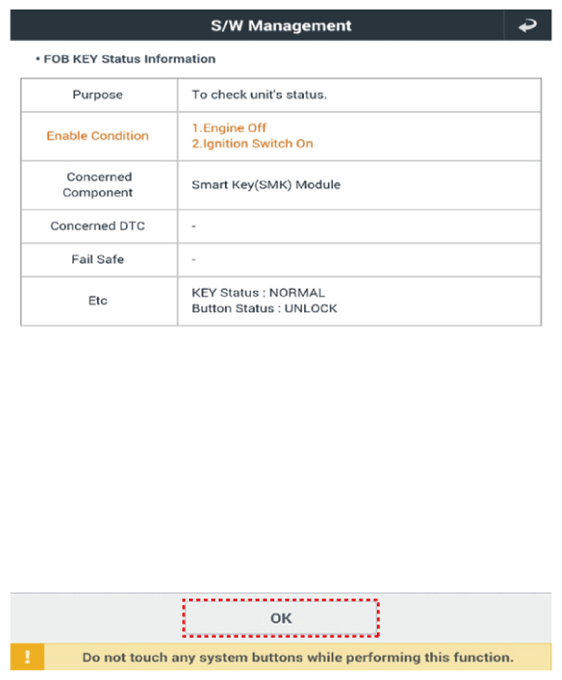

    G13158535Courtesy of KIA MOTORS AMERICA, INC.

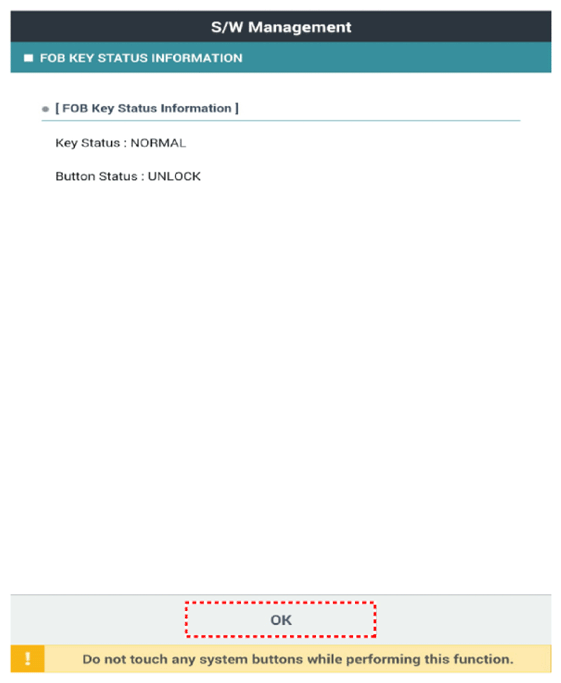

    G13158536Courtesy of KIA MOTORS AMERICA, INC.
