Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

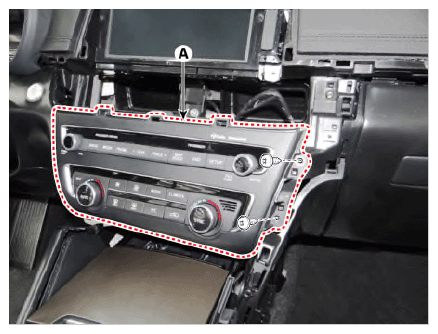

  2. Remove the center fascia lower panel (A) after loosening the mounting screws.

    (Refer to Body - "CENTER FASCIA PANEL ")

    G13077274Courtesy of KIA MOTORS AMERICA, INC.

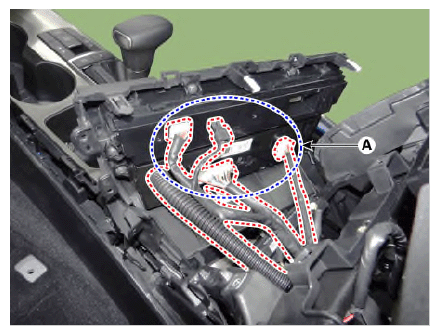

  3. Remove the center fascia lower panel after disconnecting the connectors (A).
    G13077275Courtesy of KIA MOTORS AMERICA, INC.

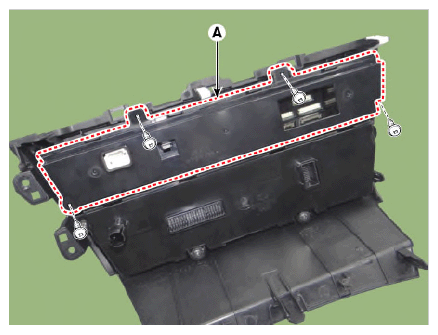

  4. Remove the AVN keyboard unit (A) after loosening the mounting screws.
    G13077276Courtesy of KIA MOTORS AMERICA, INC.
