Section 159 (Body Control Module (BCM) (HEV))
>>
Schematic Diagrams
>>

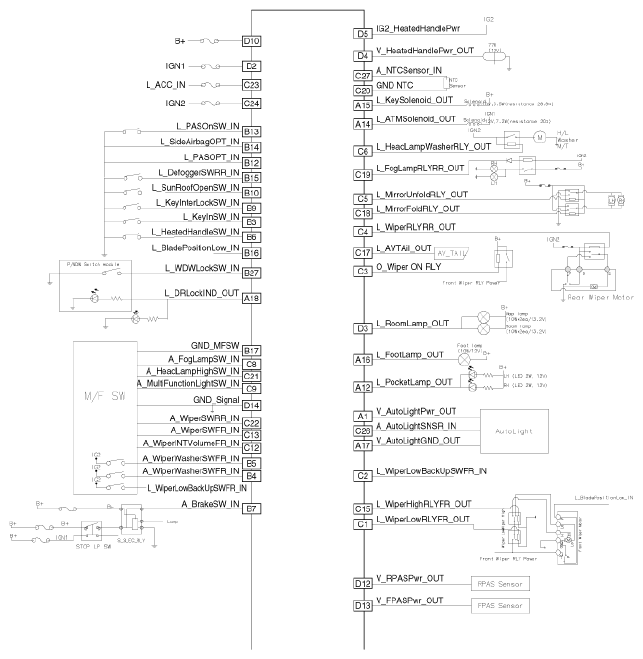

Circuit Diagram

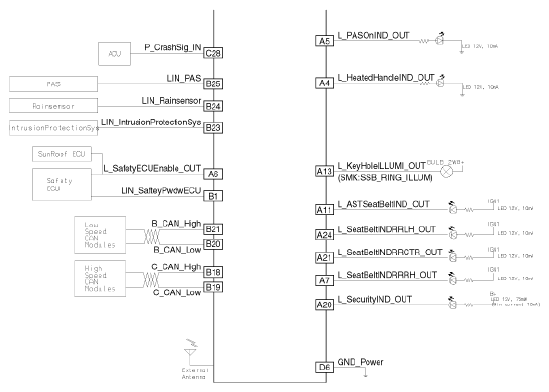

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
