Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")

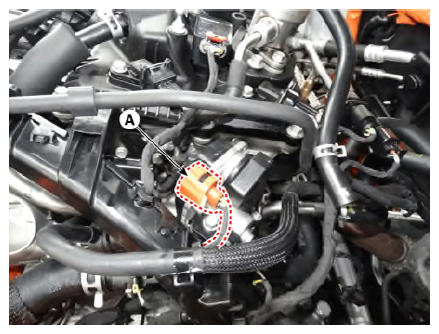

  3. Disconnect the EEGR control valve connector (A).
    G13077675Courtesy of KIA MOTORS AMERICA, INC.

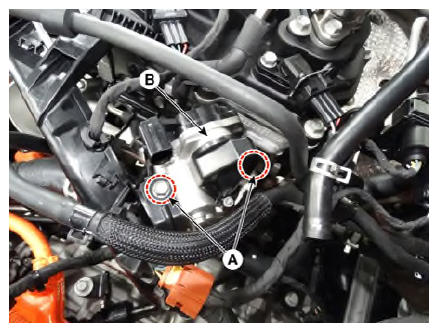

  4. Remove the EEGR control valve (B) after removing the mounting bolt (A).
    G13077676Courtesy of KIA MOTORS AMERICA, INC.
