Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

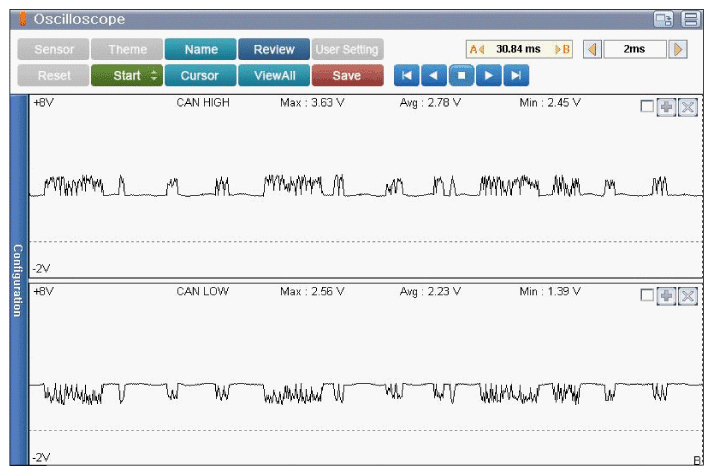

G12356568Courtesy of KIA MOTORS AMERICA, INC.

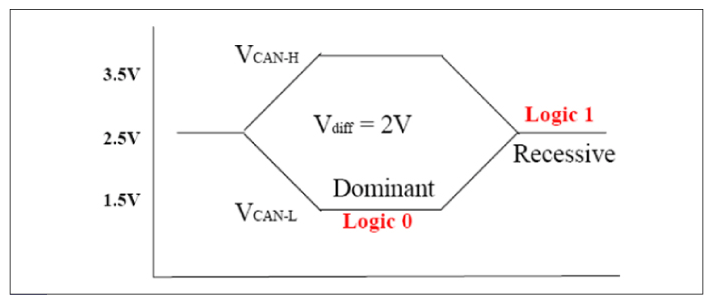

G12356569Courtesy of KIA MOTORS AMERICA, INC.
