Circuit Diagram

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

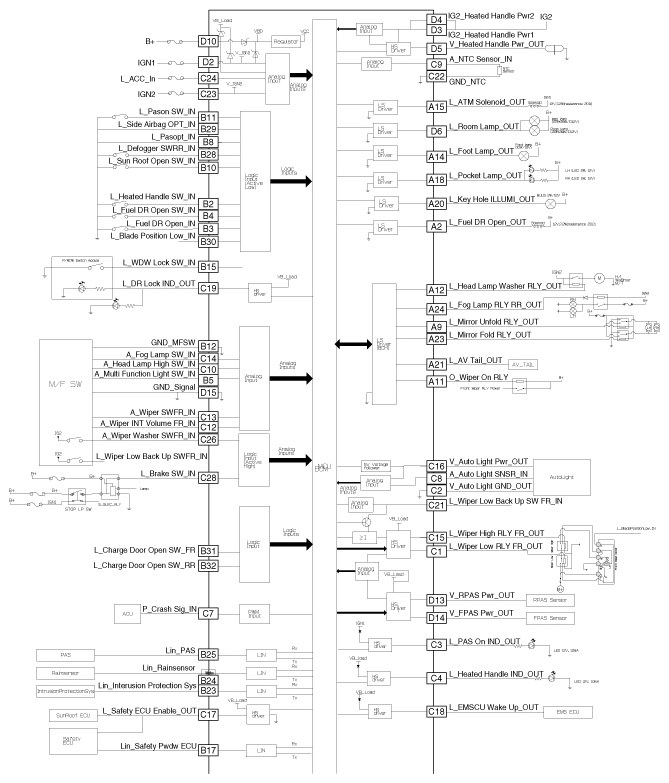

G12351255Courtesy of KIA MOTORS AMERICA, INC.

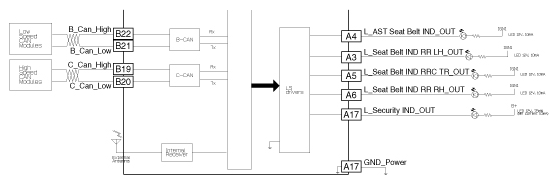

G12351256Courtesy of KIA MOTORS AMERICA, INC.
