Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

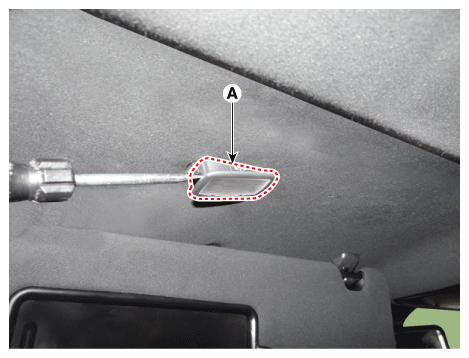

  2. Detach the vanity lamp (A) using a flat-tip screwdriver.
    G12351614

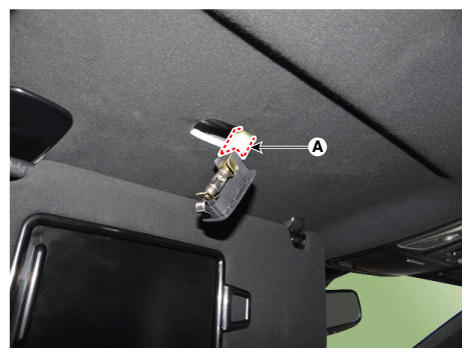

  3. Disconnect the vanity lamp connector (A).
G12351615
