Repair Procedures: Inspection: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disassembly the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

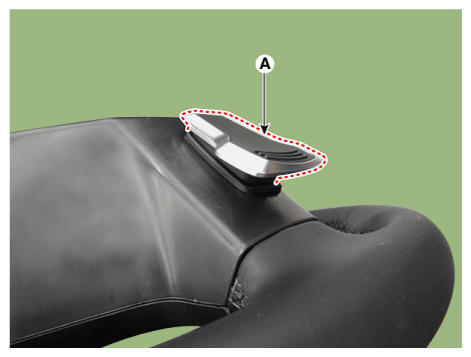

Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

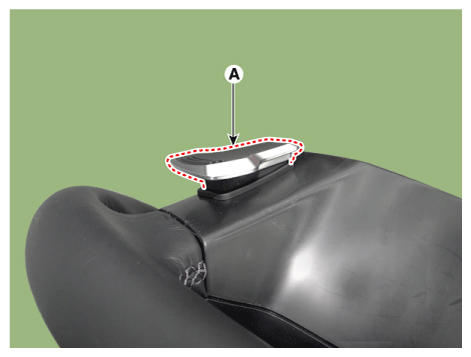

Fig 1: Removing Paddle Shift Switch Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

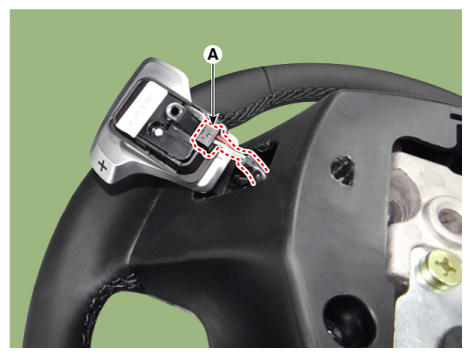

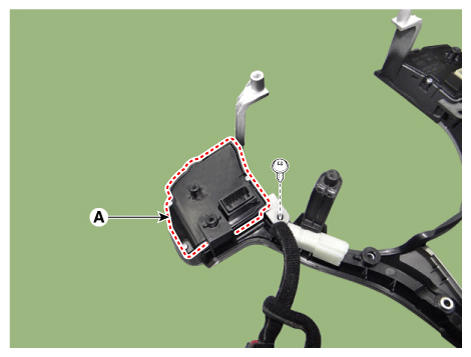

Fig 2: Removing Paddle Shift Switch (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

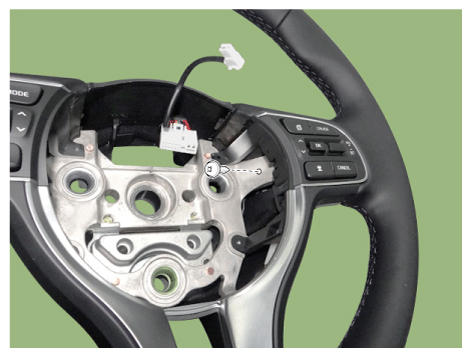

Fig 3: Removing Paddle Shift Switch Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Removing Paddle Shift Switch (RH)
Courtesy of KIA MOTORS AMERICA, INC.

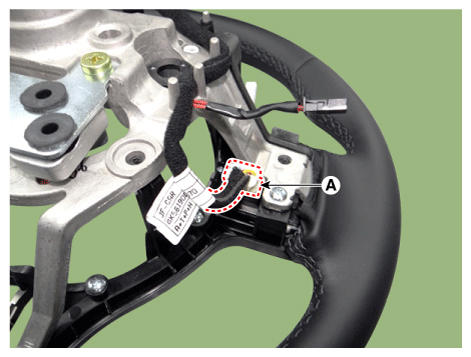

Disconnect the paddle shift switch connector (A).
[LH]

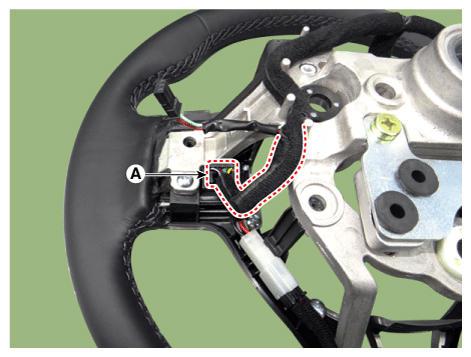

Fig 5: Disconnecting Paddle Shift Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

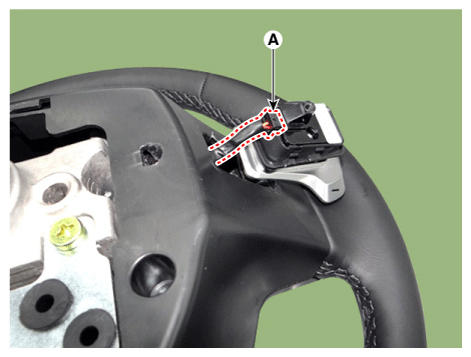

Fig 6: Disconnecting Paddle Shift Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering back cover (A).

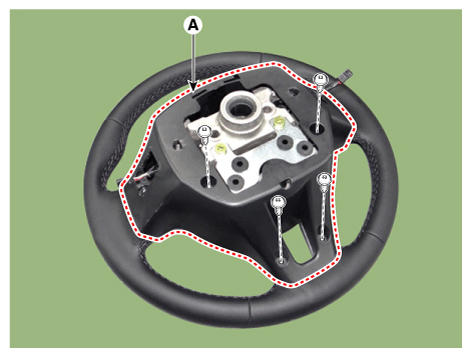

Fig 7: Removing Steering Back Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering wheel remote connector (A).
[LH]

Fig 8: Disconnecting Steering Wheel Remote Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 9: Disconnecting Steering Wheel Remote Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

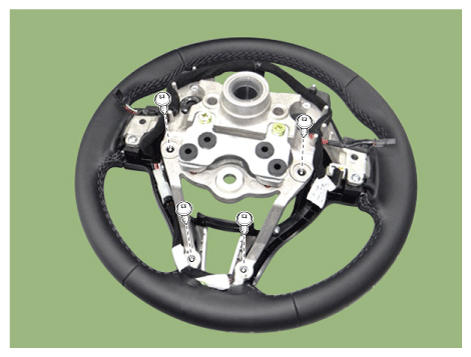

Fig 10: Removing Steering Wheel Remote Control Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

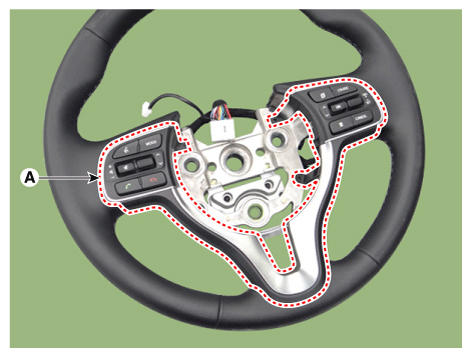

Fig 11: Removing Steering Wheel Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ASCC switch (A) after loosening the mounting screws.

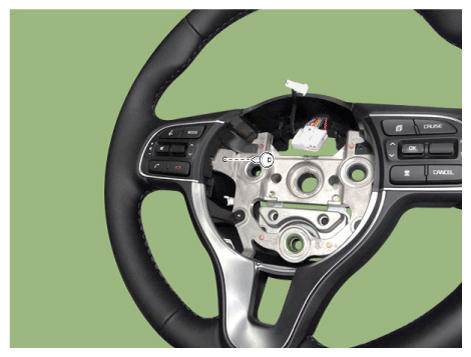

Fig 12: Removing ASCC Switch Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
