Circuit Diagram: Notes

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

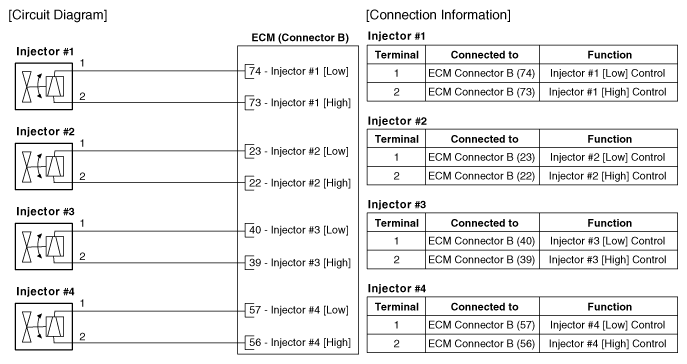

Fig 1: Injector Circuit
G12308973Courtesy of KIA MOTORS AMERICA, INC.
