Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After replacing the Electric EGR control valve, MUST perform the "Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.

Turn the ignition switch OFF.
Connect the KDS/GDS to Data Link Connector (DLC).
Turn ignition switch ON.
Select "Vehicle, Model year, Engine, System".
Select "Vehicle S/W Management".
Select "Component Change Routine".
Select "EGR Valve Change".
Perform the procedure in accordance with the message

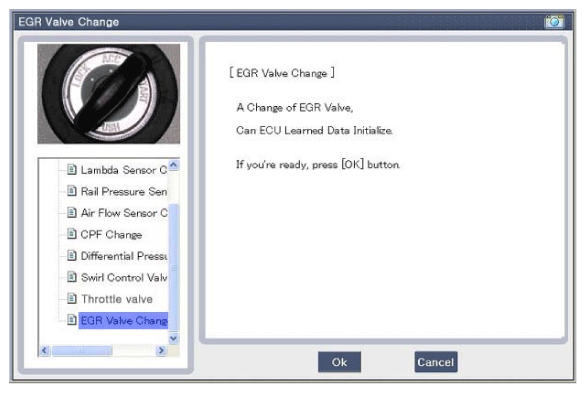

Fig 1: Screen Display - EGR Valve Change (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

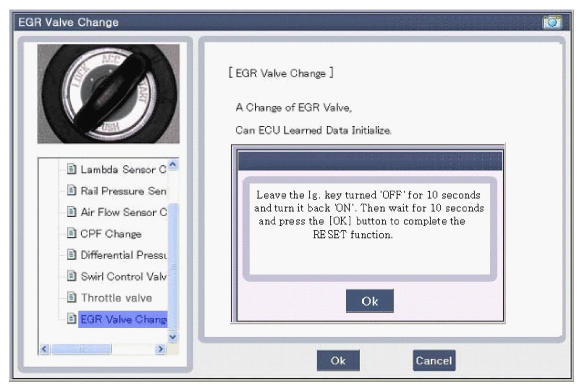

Fig 2: Screen Display - EGR Valve Change (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
