Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure to read and follow the "GENERAL SAFETY INFORMATION AND CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.

Information

The oil temperature sensor is integrated with the solenoid valve main connector and cannot be disassembled. The oil temperature sensor should be replaced with the solenoid valve main connector.

Shift the gear to "N".
Shut off the high voltage circuit.
(Refer to Automatic Transaxle System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

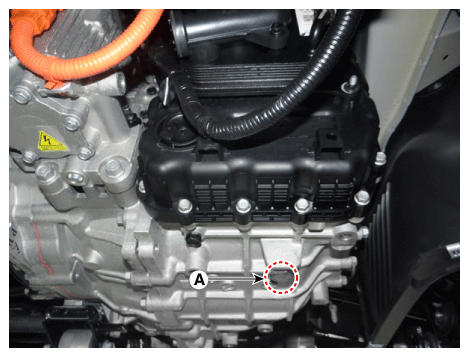

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque :

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Fig 1: Locating ATF Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
Drain the coolant of engine & transaxle cooling system.
(Refer to Engine Mechanical System - "COOLANT ")
Drain the coolant of hybrid motor cooling system.
(Refer to Hybrid Motor System - "COOLANT ")
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the hybrid power control unit (HPCU) assembly.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT ")

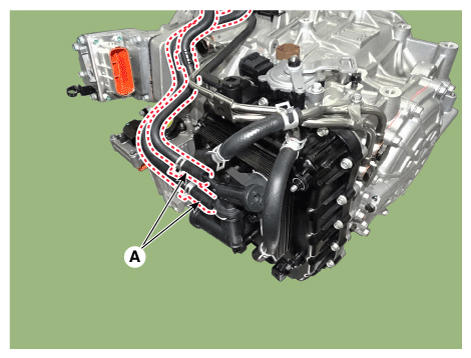

Separate the cooler hose (A).

Fig 2: Separating Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.

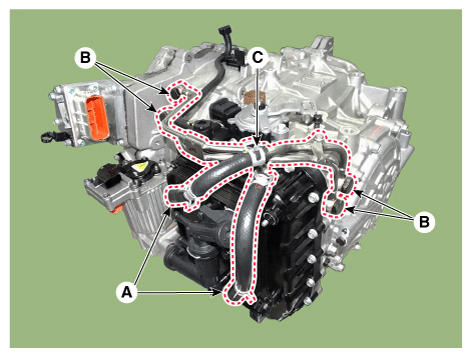

Separate the ATF cooler hose (A) and remove the ATF cooler pipe (C) loosening the eyebolts (B).
Tightening torque :

42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)

Fig 3: Removing ATF Cooler Pipe Eyebolts
Courtesy of KIA MOTORS AMERICA, INC.
Separate the breather hose (B) after removing the clamp (A).

Fig 4: Separating Breather Hose And Clamp
Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body cover (A) loosening the bolts.
Tightening torque :

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Fig 5: Removing Valve Body Cover Bolts
Courtesy of KIA MOTORS AMERICA, INC.

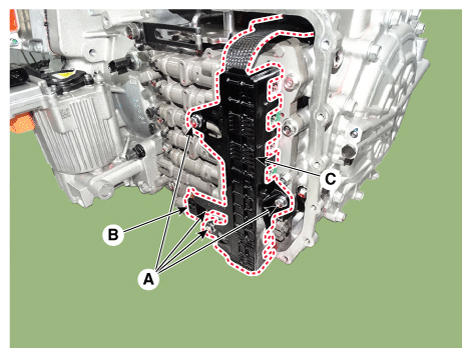

Remove the main harness (C) and oil temperature sensor (B) after loosening the bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 6: Removing Main Harness And Oil Temperature Sensor Bolts
Courtesy of KIA MOTORS AMERICA, INC.

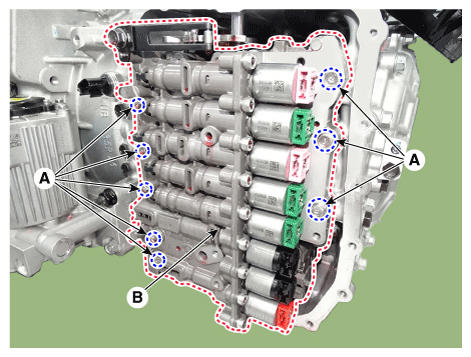

Remove the valve body assembly (B) loosening the bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 7: Removing Valve Body Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the input & output speed sensor connector (A).
Loosen the solenoid valve harness bolts (B).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 8: Disconnecting Input & Output Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid valve connector (A).

Fig 9: Disconnecting Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.

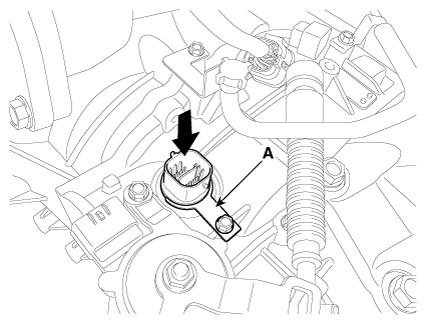

Remove the clip (A) and then remove the connector by pushing it downward.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 10: Removing Clip

Courtesy of KIA MOTORS AMERICA, INC.
