Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly and air duct.
(Refer to Engine Machanical System - "AIR CLEANER ")

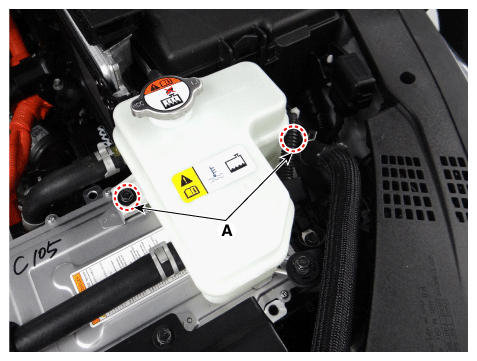

Loosen the reservoir mounting bolts (A).
Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Fig 1: Loosening Reservoir Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

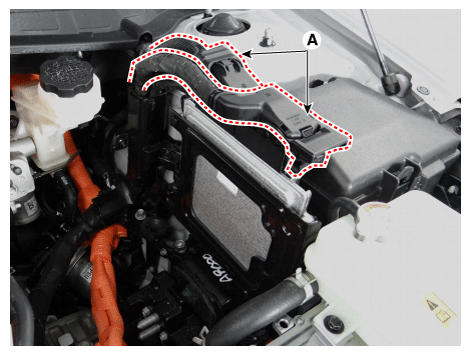

Disconnect the TCM connector (A).

Fig 2: Disconnecting TCM Connector
Courtesy of KIA MOTORS AMERICA, INC.

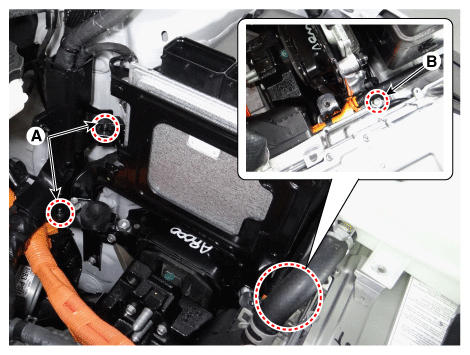

Remove the TCM loosening the bolt (B) and nuts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft

Fig 3: Removing TCM Bolt And Nuts

Courtesy of KIA MOTORS AMERICA, INC.
