Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE:

Check that the shift lever and manual control lever are placed in the "N" position.

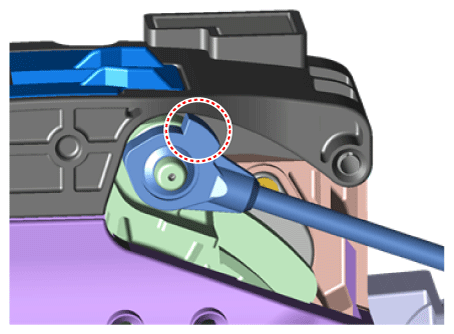

Install the shift cable after checking the direction of projection to prevent incorrect assembly.

Fig 1: Installing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

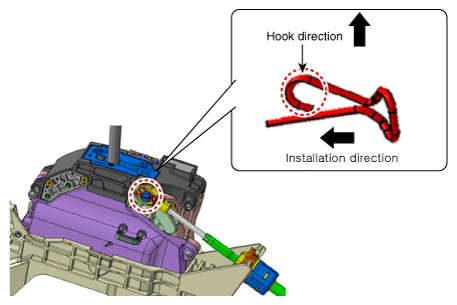

[LHD] Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Fig 2: Installing Snap Pin With Hook Facing Upward
Courtesy of KIA MOTORS AMERICA, INC.

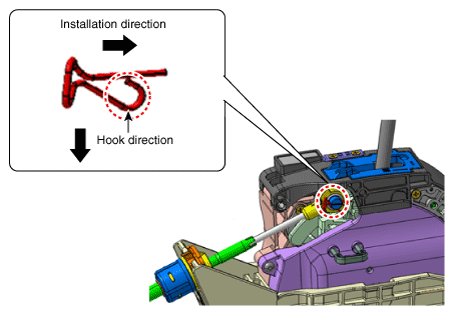

[RHD] Mind the installation direction of snap pin and install the snap pin with the hook facing downward.

Fig 3: Installing Snap Pin With Hook Facing Downward
Courtesy of KIA MOTORS AMERICA, INC.
