Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the gear is shifted to "N".
  2. Install the inhibitor switch (A).
    NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

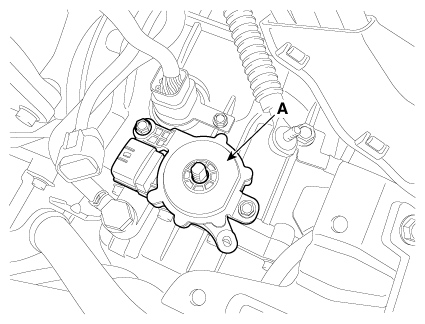

    Fig 1: Installing Inhibitor Switch
    G12309349Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the manual control lever (A).
    NOTE: Lightly tighten the manual control lever nut so that necessary adjustments can be made.

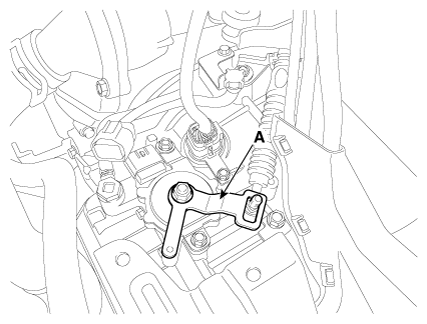

    Fig 2: Installing Manual Control Lever
    G12309350Courtesy of KIA MOTORS AMERICA, INC.
  4. Align the hole (B) in the manual control lever with the "N" position hole (A) of the inhibitor switch and then insert the SST inhibitor switch guide pin (09480-A3800).

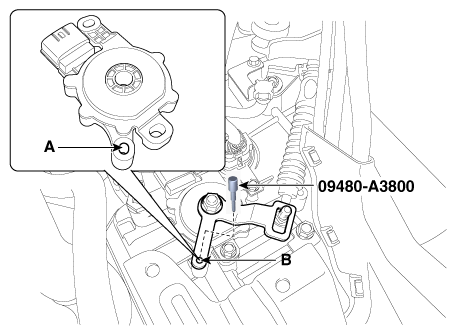

    Fig 3: Inserting SST Inhibitor Switch Guide Pin (09480-A3800)
    G12309351Courtesy of KIA MOTORS AMERICA, INC.
  5. Tighten the manual control lever mounting nut (A).

    Tightening torque  :

    17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

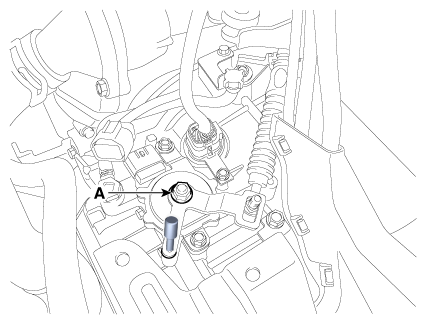

    Fig 4: Installing Manual Control Lever Mounting Nut
    G12309352Courtesy of KIA MOTORS AMERICA, INC.
  6. Tighten the inhibitor switch mounting bolts (A).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

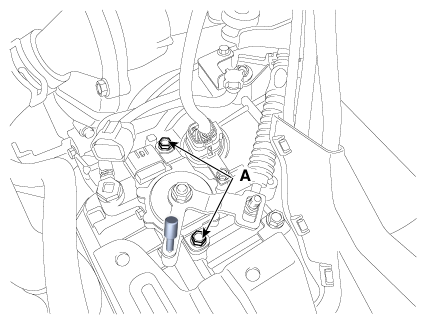

    Fig 5: Tightening Inhibitor Switch Mounting Bolts
    G12309353Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the SST (09480-A3800) from the adjusment hole.
  8. Connect the inhibitor switch connector (A).
  9. Tighten the nut (B) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

    Tightening torque  :

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

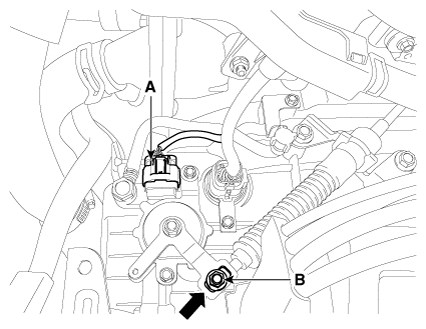

    Fig 6: Connecting Inhibitor Switch Connector
    G12309354Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the high voltage cable (A) and HPCU tray (B).

    Tightening torque  :

    19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

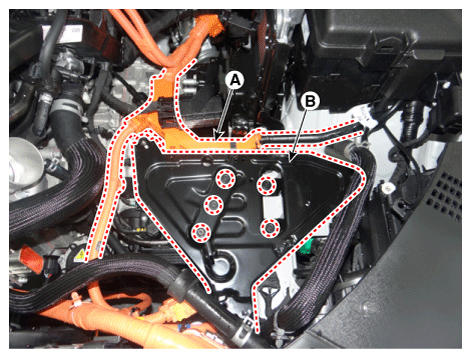

    Fig 7: Removing High Voltage Cable And HPCU Tray
    G12309355Courtesy of KIA MOTORS AMERICA, INC.
  11. Install the hybrid power control unit (HPCU) assembly.

    (Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT "

  12. Install the air cleaner assembly and air duct.

    (Refer to Engine Machanical System - "AIR CLEANER ")

  13. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS/GDS.

    (Refer to Hybrid Motor System - "COOLANT ")

  14. Connect the high voltage circuit.

    (Refer to Automatic Transaxle System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
