Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

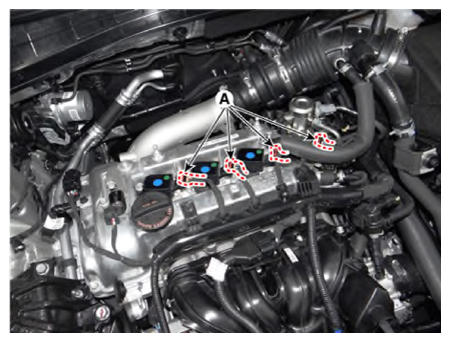

  3. Disconnect the ignition coil connector (A).
    G12915253Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

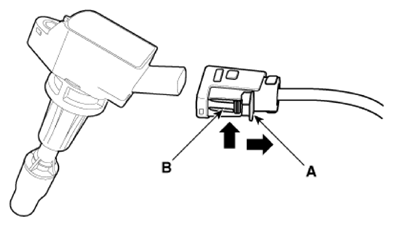

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12915254Courtesy of KIA MOTORS AMERICA, INC.

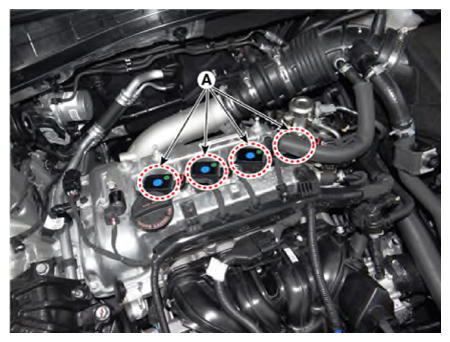

  4. Remove the ignition coil (A) after loosening the mounting bolts.
    G12915255Courtesy of KIA MOTORS AMERICA, INC.
