Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

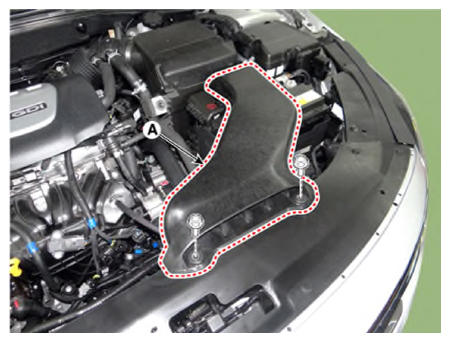

  2. Remove the air duct (A).
    G12915390Courtesy of KIA MOTORS AMERICA, INC.

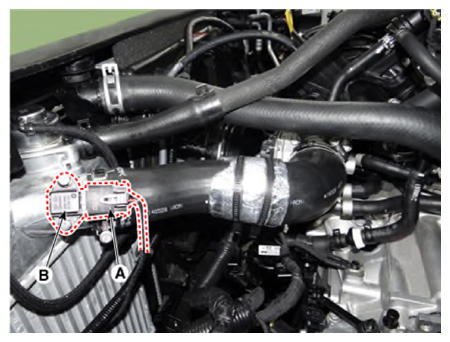

  3. Disconnect the boost pressure sensor connector (A).
  4. Remove the sensor (B) by loosening the mounting bolts.
    G12915391Courtesy of KIA MOTORS AMERICA, INC.
