Check The Power Source Circuit
- Disconnect the connector from the ABS control module.

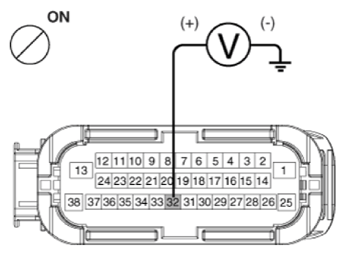

- Switch "ON" the ignition, and measure the voltage between terminal 32 of the ABS control module harness side connector and body ground.
Specification: approximately B+
Is the voltage within specification?
YES
- Check the ground circuit.
NO
- Check the harness or connector between the fuse (10A) in the engine compartment junction block and the ABS control module. Repair if necessary.
