Signal Waveform & Data

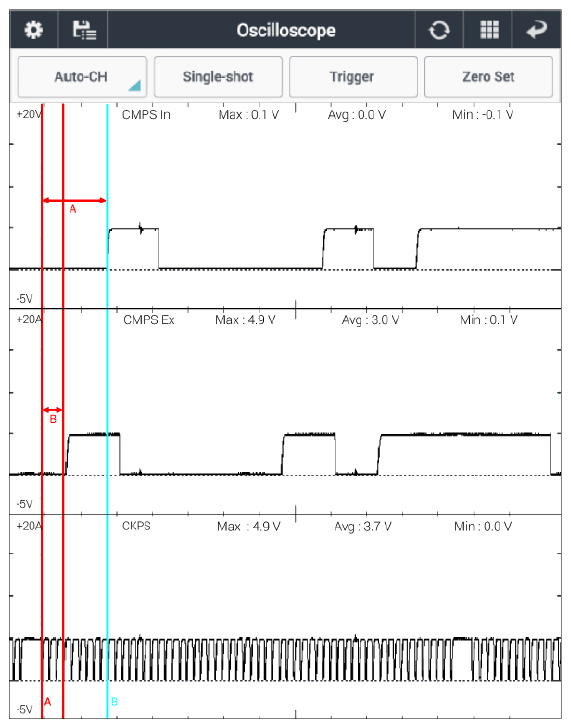

G12925957Courtesy of KIA MOTORS AMERICA, INC.
  1. A: CKPS & CMPS-Intake) Synchronization - There are about 9 teeth between the CKPS missing tooth and CMPS In Signal
  2. B: CKPS & CMPS-Exhaust) Synchronization - There are about 3 teeth between the CKPS missing tooth and CMPS Ex Signal
