Check HO2S (S1) performance

  1. Warm up the engine to normal operating temperature.
  2. Connect VMI to KDS and select "Oscilloscope".
  3. Connect Channel A positive probe to Pin No. 6 (Pumping Current) and Channel A negative probe to Pin No. 4 (Trim Resistor).
  4. Connect Channel B positive probe to Pin No. 1 (Nernst Voltage) and Channel B negative probe to Pin No. 3 (Virtual Ground).

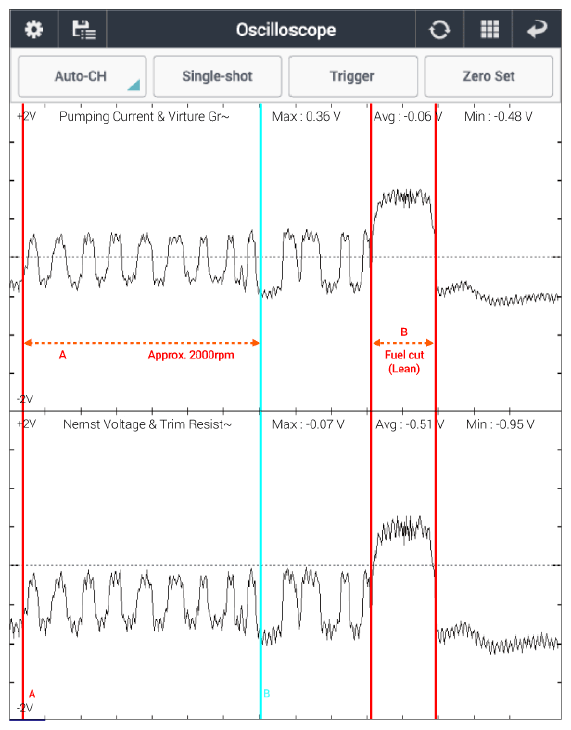

G12922911Courtesy of KIA MOTORS AMERICA, INC.

A: Approx. 2000rpm

CH.1 - Pumping Current & Virtual Ground: - 0.5 to 0.4 V

CH.2 - Nernst Voltage & Trim Resistor: -1.0 to -0.0 V

B: Fuel Cut

CH.1 - Pumping Current & Virtual Ground: Approx. 0.89V

CH.2 - Nernst Voltage & Trim Resistor: Approx. 0.64V
